Optimill hammer mill series
The Optimill series consists of hammer mills that can be applied for grinding of raw materials for normal to coarse structured products.

Key features:
– Coarse-grained particles optimum particle size range
– Patented closed rotor design  saving up to 20% in energy consumption
– Large screen area
– 1,500-1,800 rpm
– Reduced noise level

Multimill hammer mill series
The Multimill series consists of fine-grinding hammer mills. The Multimill is designed with small hammer-to-screen clearance that secures minimum particle size.

Key features:
– Optimum particle reduction
– Small screen area
– Low temperature operation for protection of nutritional value of feed ingredients
– Energy-saving closed rotor design
– 3,000-3,600 rpm

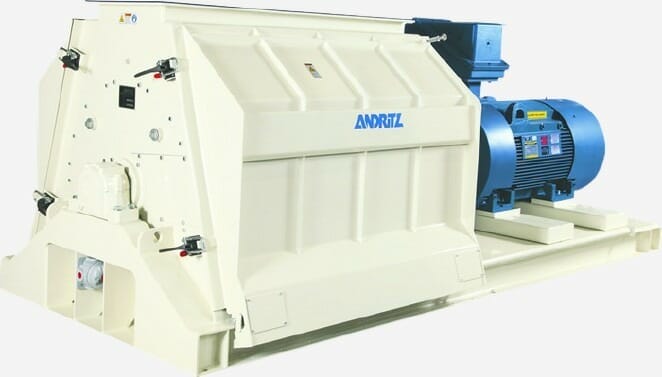

ANDRITZ hammer mill series 6

The series 6 hammer mill is designed especially for today’s demanding application and safety guidelines. It is equipped with high-volume inlet for improved flow with light density materials.

Key features:
– Externally reversible inlet baffle (with option to make automatic)
– Slotted housing, permitting rotor removal with bearings
– Large, sliding doors mounted on cam rollers, offering smooth operation
– Inlet that accepts magnetic spout, a separator or rotary pocket feeder
– Symmetrical (reversible), dynamically balanced rotor assembly
– Four, quick-release, screen-cradle supports
– Dual grinding chamber on 48″ and 60″ wide models
– Heavy-duty motor base and motor supports
– Replaceable wear plates
– Door interlock switches ensuring closure until machine comes to complete stop
– Optional vibration switch
– Optional grinding chamber temperature sensor

Equipment for grinding units The grinding process includes:
– Feeder
– Distributer screw
– Separator
– Collection bin
– Air lock
– Aspiration filter
– Fan
– Operating platform
– Pre bin

The right combination of equipment will ensure the required grinding results and create optimum conditions for subsequent process, such as mixing, pelleting, and extrusion.
